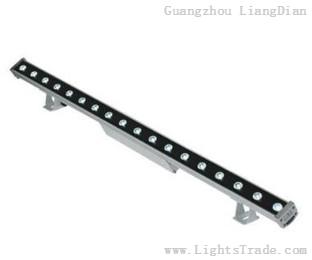

Product Features:

1. The controller and the lamp body are separated, thus the heat on the lamp body can be reduced effectively and also LED lifespan is increased.

2. Super-speed radiating structure design is applied in lamp body. On the back of lamp body, there are numbers of radiating wires. Besides, cross-ventilated design is applied in the plugs on each end. So comparing to common lamps, its radiating efficiency is 30% higher.

3. The appearance design is elaborate and fashionable, suitable for the projection lighting or bridge and historic building. Waterproof, with double-layer waterproof structure, moisture-proof.

4. The seal ring is made of high-quality imported rubber. Lamp panel and light tube are fixed by heat-conducting transparent silicon resin.

5. Bracket is adjustable, easy, convenient and fast installation.

6. Lamp body is made of aluminium alloy. Matte oxidation treatment on surface. Shockproof and corrosion-resistant.

Technical parameters:

Type of tube: Taiwan wafer

Single LED power: 1W

LED quantity: 18Pcs

System power: 22W

LED color: red, yellow, blue, white, warm white

Beam angle: 15°, 25°, 40°, 60°

Input voltage: DC24V

Protection level: IP65

Material: Lamp body is made of stretched aluminium. Anodic coating is applied on surface.

Environment temperature: -20℃~+45℃

LED drive mode: 350mA constant current drive

Control mode: DMX512 control

Color effect: Monochromatic light cast, chasing, water flowing, 256 grey

Lifespan: 20000hours

N.W: 1.8kg

Beam angle:

Where to use:

Suitable for local lighting, accent lighting and flood lighting of bridges, building or gym, etc.

Lamp material:

Lamp body is made of stretched aluminum. Matte oxidation treatment on surface.

Transparent toughened glass.

Aluminum alloy bracket.

Light distribution curve chart：

Structure and measurement chart:

System connection diagram:

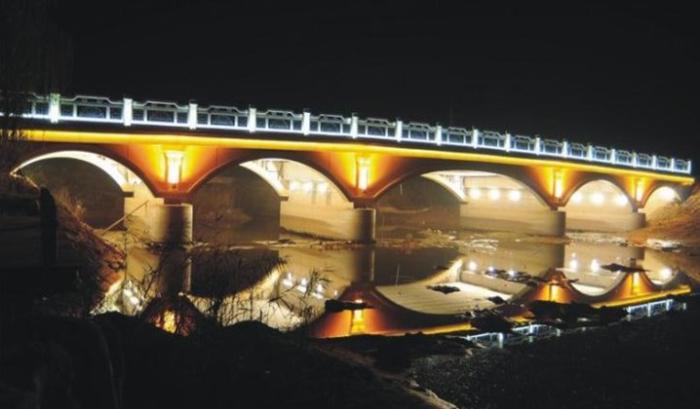

Installed effect:
